☁️ Ichimoku Cloud Indicator: Definition, How It Works, Formula, Signals, and Trading Strategies
What Is the Ichimoku Cloud Indicator?

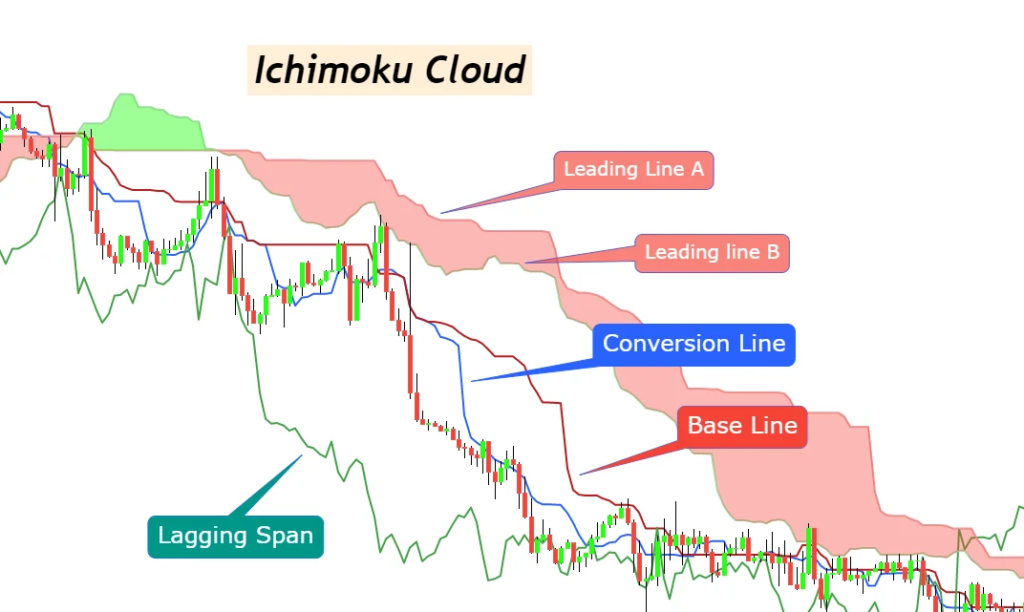

The Ichimoku Cloud, also known as Ichimoku Kinko Hyo, is a comprehensive technical analysis indicator designed to provide traders with a broad view of trend direction, momentum, support, resistance, and potential trading signals on a single chart.
Unlike indicators that focus on only one aspect of price action, Ichimoku combines five components into one system:
- Tenkan-sen (Conversion Line) – short-term momentum
- Kijun-sen (Base Line) – medium-term trend and support/resistance
- Senkou Span A – one boundary of the future cloud
- Senkou Span B – the second boundary of the future cloud
- Chikou Span (Lagging Span) – historical price confirmation
The area between Senkou Span A and Senkou Span B creates the Kumo, or Ichimoku Cloud.
In general:
- Price above the cloud → bullish trend environment
- Price below the cloud → bearish trend environment
- Price inside the cloud → neutral or uncertain conditions
The Ichimoku Cloud is widely used in stocks, forex, commodities, cryptocurrencies, and indices and can be applied to multiple timeframes.
🇯🇵 What Does Ichimoku Kinko Hyo Mean?
The original Japanese name for the indicator is Ichimoku Kinko Hyo, which is commonly translated as “one-glance equilibrium chart.”
The name reflects the indicator’s purpose: allowing traders to evaluate several aspects of market conditions from a single price chart.
The system was developed by Japanese journalist Goichi Hosoda, who worked on the concept before making it publicly available in the 1960s.
Hosoda designed the indicator to provide traders with a visual framework for assessing:
- Trend direction
- Momentum
- Support and resistance
- Potential reversals
- Market equilibrium
📊 The Five Components of the Ichimoku Cloud
Understanding each component is essential before using Ichimoku for trading.
1. Tenkan-sen — Conversion Line
The Tenkan-sen measures short-term price momentum.
It is calculated using the highest high and lowest low over the previous 9 periods.
Formula:
Tenkan-sen = (9-period High + 9-period Low) ÷ 2
A rising Tenkan-sen generally indicates increasing short-term momentum, while a declining Tenkan-sen indicates weakening momentum.
2. Kijun-sen — Base Line
The Kijun-sen provides a medium-term reference point.
It uses the highest high and lowest low over the previous 26 periods.
Formula:
Kijun-sen = (26-period High + 26-period Low) ÷ 2
The Kijun-sen can function as a dynamic support or resistance level.
It is also important for identifying bullish and bearish crossovers with the Tenkan-sen.
3. Senkou Span A — Leading Span A
Senkou Span A is calculated from the Tenkan-sen and Kijun-sen.
Formula:
Senkou Span A = (Tenkan-sen + Kijun-sen) ÷ 2
The result is plotted 26 periods into the future.
Senkou Span A forms one side of the Ichimoku Cloud.
4. Senkou Span B — Leading Span B
Senkou Span B provides the second boundary of the cloud.
It uses the highest high and lowest low over 52 periods.
Formula:
Senkou Span B = (52-period High + 52-period Low) ÷ 2
Like Senkou Span A, it is plotted 26 periods forward.
The area between Senkou Span A and B forms the Kumo.
5. Chikou Span — Lagging Span
The Chikou Span represents the current closing price shifted 26 periods backward.
Formula:
Chikou Span = Current Closing Price plotted 26 periods back
The Chikou Span is primarily used as a confirmation tool.
A Chikou Span above historical price action generally supports a bullish interpretation, while a Chikou Span below price supports a bearish interpretation.
☁️ What Is the Ichimoku Cloud?
The Ichimoku Cloud, or Kumo, is the area between Senkou Span A and Senkou Span B.
It provides a visual representation of potential future support and resistance.
Bullish Cloud
When Senkou Span A is above Senkou Span B, the cloud is bullish.
Bearish Cloud
When Senkou Span A is below Senkou Span B, the cloud is bearish.
Thick Cloud
A thicker cloud can indicate a stronger potential support or resistance zone.
Thin Cloud
A thin cloud may represent a weaker area that price can potentially break through more easily.
The cloud should not be treated as an exact price level. It is better viewed as a zone.
📈 How Does the Ichimoku Cloud Work?
The Ichimoku system combines current and historical price information to create a broader market structure.
The basic interpretation is:
| Market Condition | Ichimoku Interpretation |
|---|---|
| Price above Cloud | Bullish |
| Price below Cloud | Bearish |
| Price inside Cloud | Neutral / Transitional |
| Tenkan above Kijun | Bullish momentum |
| Tenkan below Kijun | Bearish momentum |
| Chikou above price | Bullish confirmation |
| Chikou below price | Bearish confirmation |
| Bullish Kumo | Positive trend structure |
| Bearish Kumo | Negative trend structure |
The strongest signals generally occur when multiple components agree with one another.
🔢 How Is the Ichimoku Cloud Calculated?
The standard Ichimoku configuration uses:
- 9 periods for Tenkan-sen
- 26 periods for Kijun-sen
- 52 periods for Senkou Span B
- 26-period forward projection
- 26-period backward projection for Chikou Span
The calculation can be summarized as:
Tenkan-sen
(9-period High + 9-period Low) ÷ 2
Kijun-sen
(26-period High + 26-period Low) ÷ 2
Senkou Span A
(Tenkan-sen + Kijun-sen) ÷ 2
Senkou Span B
(52-period High + 52-period Low) ÷ 2
Chikou Span
Current Close shifted 26 periods backward
The cloud is then created by filling the area between Senkou Span A and Senkou Span B.
📖 How to Read the Ichimoku Cloud
Reading Ichimoku becomes easier when the indicator is broken into several simple questions.
1. Where Is Price Relative to the Cloud?
Above the cloud: bullish environment.
Below the cloud: bearish environment.
Inside the cloud: uncertain or transitional environment.
2. Where Is the Tenkan-sen?
A Tenkan-sen above the Kijun-sen indicates stronger short-term momentum.
A Tenkan-sen below the Kijun-sen indicates weaker short-term momentum.
3. What Is the Cloud Doing?
A bullish cloud supports a positive trend structure.
A bearish cloud supports a negative trend structure.
4. What Is the Chikou Span Showing?
The Chikou Span can provide additional confirmation by comparing current price with historical price action.
The more components that align, the stronger the overall Ichimoku setup tends to be.
🚀 How to Use Ichimoku Cloud in Trading
There are several popular ways traders use the Ichimoku Cloud.
1. Cloud Breakout
A bullish cloud breakout occurs when price moves from below the cloud to above it.
A bearish cloud breakout occurs when price moves from above the cloud to below it.
Traders often look for increased volume and confirmation from the other Ichimoku components before entering a position.
2. Tenkan-sen and Kijun-sen Crossover
A bullish crossover occurs when:
Tenkan-sen crosses above Kijun-sen
A bearish crossover occurs when:
Tenkan-sen crosses below Kijun-sen
The location of the crossover relative to the cloud is important.
A bullish crossover above the cloud generally provides stronger bullish confirmation than one occurring below the cloud.
Likewise, a bearish crossover below the cloud can provide stronger bearish confirmation.
3. Kumo Twist
A Kumo Twist occurs when Senkou Span A crosses Senkou Span B.
Bullish Kumo Twist
Senkou Span A crosses above Senkou Span B.
Bearish Kumo Twist
Senkou Span A crosses below Senkou Span B.
A Kumo Twist can signal a potential change in the underlying trend structure.
However, it should generally be confirmed using price action and other components of the Ichimoku system.
🎯 A Multi-Confirmation Ichimoku Strategy
One practical approach is to require several Ichimoku signals to align before considering a trade.
Bullish Setup
A trader may look for:
- Price above the cloud
- Tenkan-sen above Kijun-sen
- Bullish cloud
- Chikou Span above historical price
- Price breaking or holding above resistance
- Increasing volume
The more conditions that align, the stronger the technical confirmation.
Bearish Setup
The opposite conditions can be used:
- Price below the cloud
- Tenkan-sen below Kijun-sen
- Bearish cloud
- Chikou Span below historical price
- Price breaking below support
- Increasing downside volume
⏱️ What Is the Best Timeframe for Ichimoku Cloud?
There is no universally best timeframe for Ichimoku.
However, the indicator is often more useful on higher timeframes, such as:
- 4-hour
- Daily
- Weekly
Lower timeframes can generate more noise and false signals, particularly in volatile or range-bound markets.
A multi-timeframe approach can be useful.
For example:
Weekly chart → Identify the primary trend
Daily chart → Identify the trading setup
4-hour chart → Refine the entry
This approach can help traders avoid taking short-term trades against the broader trend.
🛡️ How to Find Support and Resistance With Ichimoku
Ichimoku provides several potential support and resistance references.
Tenkan-sen
Can act as short-term dynamic support or resistance.
Kijun-sen
Often provides a stronger medium-term reference level.
Senkou Span A
Forms one side of the cloud and can act as support or resistance.
Senkou Span B
Can represent another important support or resistance zone.
The Cloud
The entire Kumo can act as a broader support or resistance area.
When price approaches the cloud, traders can monitor price action for signs of rejection or breakout.
🔄 How Does Ichimoku Identify Trend Reversals?
Ichimoku can help identify potential reversals through several signals.
These include:
- Tenkan/Kijun crossover
- Cloud breakout
- Kumo Twist
- Chikou Span crossover
- Price moving through the cloud
- Changes in cloud structure
A reversal signal becomes more meaningful when several of these conditions occur together.
For example, a bullish Tenkan/Kijun crossover combined with a price breakout above the cloud and bullish Chikou Span confirmation provides considerably more information than relying on the crossover alone.
📊 Ichimoku Cloud and Other Technical Indicators
Although Ichimoku is a comprehensive system, traders can combine it with other technical tools.
Ichimoku + RSI
The Relative Strength Index (RSI) can help identify momentum and potential overbought or oversold conditions.
For example:
Price above cloud + bullish Ichimoku structure + RSI above 50
can provide stronger bullish confirmation.
Ichimoku + Moving Averages
Long-term moving averages such as the 50-day or 200-day moving average can help establish the broader trend.
A bullish Ichimoku setup above a rising 200-day moving average can provide additional trend confirmation.
Ichimoku + Fibonacci Retracement
Fibonacci levels can be used to identify potential support and resistance zones.
When a Fibonacci level aligns with the Ichimoku cloud or Kijun-sen, traders may view the area as a potentially important technical zone.
Ichimoku + Candlestick Patterns
Candlestick formations such as:
- Bullish engulfing
- Bearish engulfing
- Hammer
- Shooting star
- Doji
can provide additional confirmation around Ichimoku support and resistance areas.
☁️ Ichimoku Cloud vs Moving Averages
Ichimoku averages are different from conventional moving averages.
A traditional Simple Moving Average (SMA) calculates the average closing price over a specified number of periods.
Ichimoku’s Tenkan-sen and Kijun-sen instead use the midpoint between the highest high and lowest low during the selected period.
This makes the Ichimoku system more focused on the broader trading range rather than simply averaging closing prices.
📈 Advantages of the Ichimoku Cloud
Comprehensive Market View
Five components provide information about trend, momentum, support, resistance, and historical price positioning.
Multiple Signals in One Indicator
Traders can analyze several technical conditions without adding numerous separate indicators to the chart.
Forward-Projected Support and Resistance
The cloud projects potential support and resistance 26 periods into the future.
Versatility
Ichimoku can be applied to:
- Stocks
- Forex
- Commodities
- Indices
- Cryptocurrencies
It can also be adapted to different trading styles and timeframes.
Trend Identification
The relationship between price and the cloud makes it relatively straightforward to identify bullish, bearish, and transitional environments.
⚠️ Disadvantages of the Ichimoku Cloud
Complex for Beginners
The five components and multiple signals can initially make the indicator difficult to understand.
Can Produce False Signals
Like every technical indicator, Ichimoku can generate false signals, particularly in sideways markets.
Can Become Visually Crowded
The multiple lines and cloud can make charts difficult to interpret.
Less Effective in Choppy Markets
Ichimoku generally works best when a market has a recognizable trend. Frequent price movement through the cloud can create conflicting signals.
Lagging Components
Although the cloud is projected forward, much of the system is calculated from historical price data. It should therefore not be considered a predictive model.
❓ Is Ichimoku Cloud a Leading Indicator?
No.
The Ichimoku Cloud is generally considered a trend-following technical analysis system, rather than a pure leading indicator.
Although the cloud projects support and resistance forward, its calculations are based on historical price data.
The forward projection should therefore be interpreted as a technical framework rather than a prediction of future prices.
🔮 Does Ichimoku Cloud Predict the Future?
No technical indicator can reliably predict future price movements.
Ichimoku analyzes historical and current price data to identify market structure, trend, momentum, and potential support and resistance.
Its value comes from helping traders structure their analysis rather than providing certainty about what price will do next.
🎯 What Is the Winning Rate of Ichimoku Cloud?
There is no universal winning rate for Ichimoku Cloud strategies.
Results depend on:
- Market conditions
- Asset class
- Trading timeframe
- Entry and exit rules
- Risk management
- Position sizing
- Confirmation methods
- Trader execution
A strategy that works well during a strong trend may perform poorly during a sideways market.
For this reason, traders should backtest specific Ichimoku rules rather than assume that the indicator itself has a fixed success rate.
🧠 Common Ichimoku Trading Mistakes
Using Every Signal Independently
A single crossover does not necessarily represent a high-probability trade.
Ignoring the Cloud
The location of a crossover relative to the cloud can significantly affect the interpretation of the signal.
Trading Every Cloud Break
Some cloud breakouts fail quickly, particularly in range-bound markets.
Using Very Short Timeframes Without Testing
Lower timeframes can produce significantly more noise.
Ignoring Risk Management
Even strong-looking Ichimoku setups can fail.
Overloading the Chart
Adding too many indicators can create conflicting signals instead of improving analysis.
🆚 Ichimoku Cloud vs RSI
| Feature | Ichimoku Cloud | RSI |
|---|---|---|
| Primary Purpose | Trend, momentum, support & resistance | Momentum |
| Range | No fixed range | 0–100 |
| Overbought/Oversold | Not its primary function | Yes |
| Support/Resistance | Yes | Limited |
| Trend Identification | Strong | Moderate |
| Cloud Structure | Yes | No |
| Forward Projection | Yes | No |
| Best Use | Trend-following analysis | Momentum confirmation |
The two indicators can complement each other because they measure different aspects of market behavior.
📌 Ichimoku Cloud Trading Checklist
Before entering a trade, traders can consider asking:
Trend
- Is price above or below the cloud?
- Is the cloud bullish or bearish?
Momentum
- Is Tenkan-sen above or below Kijun-sen?
- Is momentum strengthening?
Confirmation
- Where is the Chikou Span?
- Is volume supporting the move?
Support & Resistance
- Where are the cloud, Kijun-sen and other key technical levels?
Risk
- Where is the invalidation level?
- What is the potential reward relative to the risk?
This checklist can help prevent traders from relying on a single signal.
🏁 Final Takeaway
The Ichimoku Cloud is one of the most comprehensive trend-following tools in technical analysis. Its combination of the Tenkan-sen, Kijun-sen, Senkou Span A, Senkou Span B, and Chikou Span allows traders to evaluate trend direction, momentum, support, resistance, and potential trading signals from a single chart.
The most important signals include cloud breakouts, Tenkan/Kijun crossovers, Kumo Twists, and Chikou Span confirmation.
However, Ichimoku should not be treated as a standalone prediction tool. Its effectiveness can improve when combined with price action, volume, candlestick patterns, RSI, moving averages, Fibonacci levels, and multi-timeframe analysis.
Most importantly, traders should use defined entry rules, stop-loss levels, position sizing, and disciplined risk management when applying Ichimoku-based strategies.
