📊 Average True Range (ATR): Calculation, Trading Strategies, Settings, Advantages & Limitations
The Average True Range (ATR) is one of the most widely used technical indicators for measuring market volatility. Developed by J. Welles Wilder Jr., ATR helps traders understand how much an asset typically moves over a given period.
Unlike directional indicators such as moving averages or MACD, ATR does not predict whether prices will rise or fall. Instead, it measures the magnitude of price movement.
This makes ATR particularly useful for:
- 📊 Measuring market volatility
- 🛑 Setting volatility-adjusted stop-loss levels
- 📐 Determining position size
- 🎯 Establishing profit targets
- 🚀 Assessing breakout strength
- 🔄 Identifying changes between low- and high-volatility environments
- 📈 Adapting trading strategies to current market conditions
📌 What Is the Average True Range (ATR)?
The Average True Range, commonly abbreviated as ATR, is a volatility indicator introduced by J. Welles Wilder Jr. in his 1978 book New Concepts in Technical Trading Systems.
ATR measures the average size of an asset’s true price range over a specified number of periods.
The important point is that ATR measures how much price is moving, rather than which direction price is moving.
For example:
- 📈 Rising price + rising ATR = an uptrend accompanied by increasing volatility
- 📉 Falling price + rising ATR = a downtrend accompanied by increasing volatility
- ↔️ Stable price + falling ATR = declining volatility or consolidation
Therefore, ATR should not be interpreted as a bullish or bearish indicator by itself.
🧮 How Is ATR Calculated?
ATR is calculated in two main stages:
- Calculate the True Range (TR)
- Average the True Range over a selected period
The True Range is the greatest of three values:
TR = Max [(High − Low), |High − Previous Close|, |Low − Previous Close|]
The use of the previous closing price is important because it allows ATR to account for gaps between trading sessions.
📊 ATR Formula
For a Wilder-style ATR calculation:
ATR = [(Previous ATR × (n − 1)) + Current TR] / n
Where:
- n = number of periods
- TR = current True Range
- Previous ATR = ATR from the previous period
Many charting platforms use Wilder’s smoothing method, although implementation details can vary.
🔢 ATR Calculation Example
Suppose a stock has the following prices:
Day 1
- High = $100
- Low = $95
- Previous Close = $98
The three possible True Range calculations are:
- High − Low = $5
- |High − Previous Close| = $2
- |Low − Previous Close| = $3
Therefore:
TR = $5
Now suppose the next day’s:
- High = $104
- Low = $97
- Previous Close = $100
Then:
- High − Low = $7
- |High − Previous Close| = $4
- |Low − Previous Close| = $3
Therefore:
TR = $7
The process continues for every trading period. ATR then smooths these True Range values to produce a single measure of average volatility.

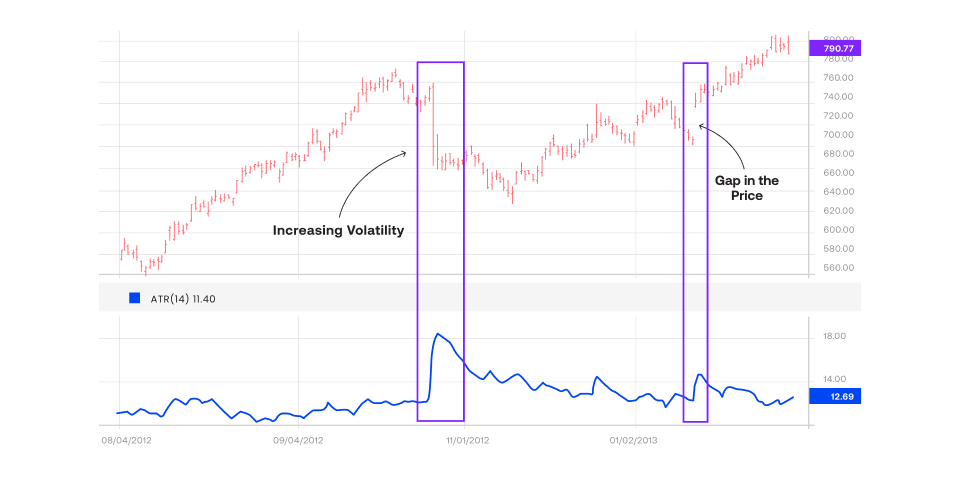

📈 How to Read the ATR Indicator
ATR is usually displayed as a separate indicator below the price chart.
The most important concept is:
Higher ATR = greater price volatility. Lower ATR = lower price volatility.
🟢 Rising ATR
A rising ATR indicates that price movements are becoming larger.
This can happen during:
- Breakouts
- Strong trends
- Market selloffs
- Earnings announcements
- Economic events
- Panic or speculative activity
Importantly, rising ATR does not tell you whether the market is bullish or bearish.
🔵 Falling ATR
A declining ATR indicates that price movements are becoming smaller.
This commonly occurs during:
- Consolidation
- Low-volatility environments
- Range-bound markets
- Post-breakout cooling periods
A prolonged decline in ATR can sometimes precede a volatility expansion, but it does not predict its direction.
⚙️ What Is the Best ATR Setting?
The 14-period ATR is the traditional default and remains a useful starting point for many traders.
However, there is no universally “best” ATR setting.
| Trading Style | Possible ATR Setting | Characteristics |
|---|---|---|
| Scalping | 5–10 | Faster response, more noise |
| Intraday | 10–14 | Balanced sensitivity |
| Swing Trading | 14–20 | Smoother volatility measurement |
| Position Trading | 20–50 | Longer-term volatility |
| Long-Term Analysis | 50+ | Very smooth, slower response |
⚠️ Important
Changing the ATR period changes how quickly the indicator reacts.
Shorter ATR → faster but noisier
Longer ATR → smoother but slower
The appropriate setting should therefore be tested against the specific asset and strategy.
🛑 How to Use ATR for Stop Losses
One of the most popular applications of ATR is volatility-adjusted stop-loss placement.
Instead of using an arbitrary percentage such as 5%, traders can use the asset’s current volatility.
For example:
Stop Distance = ATR × Multiplier
Suppose:
- Stock price = $100
- ATR = $3
- Stop multiplier = 2
Then:
Stop distance = $3 × 2 = $6
A long position could therefore use a stop approximately $6 below the entry price, subject to the strategy and nearby technical levels.
This approach allows stop distances to adapt to market volatility.
🧠 Why This Matters
A fixed $2 stop may be:
- Too tight for a highly volatile stock
- Too wide for a low-volatility stock
ATR provides a more dynamic framework.
📐 ATR and Position Sizing
ATR can also help determine position size.
The basic principle is:
Higher volatility → smaller position
Lower volatility → potentially larger position
For example, if two stocks have identical prices but one has twice the ATR of the other, the more volatile stock may require a smaller position if the trader wants to maintain comparable dollar risk.
This is particularly useful for traders managing multiple positions simultaneously.
🚀 How to Use ATR for Breakout Trading
ATR can help traders assess whether a breakout is accompanied by meaningful volatility expansion.
Potentially Stronger Breakout
A trader may look for:
Price breakout + increasing ATR + strong volume
This combination indicates that the breakout is occurring alongside increased market participation and volatility.
⚠️ Potentially Weaker Breakout
A breakout accompanied by:
Low volume + flat/falling ATR
may deserve additional confirmation.
ATR should therefore be used as a confirmation tool, rather than as proof that a breakout will succeed.
📊 ATR in Different Market Conditions
📈 ATR in Trending Markets
During a strong trend, ATR may rise as price movements become larger.
However, rising ATR does not determine whether the trend is bullish or bearish.
For example:
Price ↑ + ATR ↑ = bullish trend with expanding volatility
Price ↓ + ATR ↑ = bearish trend with expanding volatility
This distinction is extremely important.
↔️ ATR in Range-Bound Markets
During consolidation, ATR frequently declines as price movements become smaller.
A prolonged period of low ATR can indicate volatility compression.
Traders may then monitor the market for a subsequent expansion in volatility.
However, ATR itself cannot tell traders whether the eventual breakout will be upward or downward.
⚡ ATR in Highly Volatile Markets
During market shocks, earnings announcements, major economic releases, or sharp selloffs, ATR can increase substantially.
This can help traders recognize that:
- 🛑 Stops may need additional room
- 📉 Position sizes may need to be reduced
- ⚠️ Breakout and reversal risks may increase
- 📊 Options premiums may also be affected indirectly through changing volatility expectations
🎯 ATR Trading Strategies
ATR is rarely used effectively as a standalone entry indicator. Its greatest value often comes from combining volatility information with price action and directional indicators.
1. 🛑 ATR Stop-Loss Strategy
Use an ATR multiple to determine the initial stop distance.
Example:
Stop = Entry Price − (2 × ATR)
for a long trade.
The multiplier can be adjusted according to the strategy and asset.
2. 🚀 ATR Breakout Strategy
Look for:
- A period of low volatility
- Price consolidation
- A breakout from the range
- ATR beginning to expand
- Volume confirmation
This setup attempts to identify transitions from volatility compression to volatility expansion.
3. 📈 ATR Trend Strategy
Combine ATR with a directional trend indicator such as a moving average.
For example:
Price above 50-day moving average + rising ATR
can indicate an uptrend accompanied by increasing volatility.
Conversely:
Price below 50-day moving average + rising ATR
can indicate a bearish trend accompanied by expanding volatility.
4. 📐 ATR Position-Sizing Strategy
Calculate the amount of capital you are willing to risk and compare it with the ATR-based stop distance.
The greater the expected price movement, the smaller the position can be for a fixed amount of risk.
5. 🔄 ATR Trailing Stop Strategy
ATR can also be used to create a dynamic trailing stop.
For example:
Trailing Stop = Highest Price − (ATR × Multiplier)
for a long position.
As the price rises, the stop can move upward while maintaining a distance based on current volatility.
🆚 ATR vs. Standard Deviation
Both ATR and standard deviation can be used to analyze volatility, but they measure different things.
| Feature | ATR | Standard Deviation |
|---|---|---|
| Primary purpose | Price-range volatility | Dispersion of returns/prices |
| Uses price gaps | ✅ Yes | Depends on calculation |
| Directional? | ❌ No | ❌ No |
| Stop-loss applications | ⭐⭐⭐⭐⭐ | ⭐⭐⭐ |
| Easy to interpret | High | Moderate |
| Common trading use | Volatility & risk management | Volatility/statistical analysis |
ATR is particularly popular among discretionary traders because its value is expressed directly in price units.
🆚 ATR vs. Bollinger Bands
ATR and Bollinger Bands both provide volatility information, but they do so differently.
ATR: Measures the average magnitude of price ranges.
Bollinger Bands: Measure price dispersion around a moving average.
They can complement each other.
For example, a trader could identify:
Bollinger Band squeeze + low ATR → potential volatility compression
and then monitor for:
Price breakout + expanding ATR → volatility expansion confirmation
📈 Is ATR Good for Swing Trading?
Yes. ATR can be particularly useful for swing traders.
Swing trading involves holding positions through price movements that can last several days or weeks. Because volatility can change significantly during these periods, ATR can help traders adapt their risk parameters.
Swing traders can use ATR to:
- 🛑 Set stop-loss distances
- 🎯 Estimate realistic price targets
- 📐 Adjust position sizes
- 🚀 Confirm volatility expansion
- 🔄 Trail stops as the trade develops
- 📊 Compare volatility across different stocks
For example, a trader could screen for stocks where ATR is increasing while price simultaneously breaks above a key resistance level.
🎯 ATR for Options Trading
ATR can also be useful for options traders, although it should not be confused with implied volatility (IV).
ATR measures the historical magnitude of price movement.
IV represents the market’s expectations regarding future volatility as reflected in option prices.
Therefore:
ATR ≠ Implied Volatility
Options traders can nevertheless use ATR to estimate the underlying stock’s recent movement and assess whether an option’s strike price is realistically positioned relative to recent trading ranges.
ATR can also help identify periods where the underlying asset has experienced unusually large price movements.
✅ Advantages of Average True Range
1. 📊 Measures Volatility
ATR provides a straightforward measure of how much an asset is moving.
2. 🛑 Useful for Risk Management
ATR allows traders to adjust stop-loss distances according to current volatility.
3. 📐 Helps With Position Sizing
ATR can help traders normalize risk between assets with different volatility profiles.
4. 🚀 Useful for Breakout Analysis
Expanding ATR can help confirm that volatility is increasing during a price breakout.
5. 🔄 Works Across Markets
ATR can be applied to:
- Stocks
- ETFs
- Futures
- Forex
- Commodities
- Indices
- Cryptocurrencies
6. ⚙️ Easy to Customize
Traders can adjust the ATR period according to their strategy and timeframe.
⚠️ Limitations of ATR
ATR is useful, but it has several important limitations.
1. 🐌 ATR Is Not a Directional Indicator
ATR cannot tell you whether prices will rise or fall.
A rising ATR simply means volatility is increasing.
2. ⏳ It Is Based on Historical Data
ATR is calculated from past price ranges and therefore cannot perfectly anticipate future volatility.
3. 🚨 Volatility Spikes Can Distort the Indicator
A major one-day event can cause ATR to rise sharply and remain elevated for several periods.
4. ↔️ It Can Be Less Useful in Choppy Markets
ATR may show changing volatility without providing a clear directional trading opportunity.
5. 🧮 The Correct Multiplier Is Strategy Dependent
There is no universally optimal ATR multiplier for stop-losses or trailing stops.
🧠 Common ATR Mistakes to Avoid
❌ Mistake 1: Treating Rising ATR as Bullish
Rising ATR means higher volatility, not necessarily higher prices.
❌ Mistake 2: Using the Same Stop for Every Stock
Different stocks have very different volatility profiles.
❌ Mistake 3: Ignoring Price Structure
An ATR-based stop should still be evaluated against support, resistance, swing highs, and swing lows.
❌ Mistake 4: Assuming Low ATR Means a Breakout Is Guaranteed
Low volatility can precede a major move, but the direction remains uncertain.
❌ Mistake 5: Using ATR Alone
ATR is primarily a volatility tool. Directional analysis should generally come from price action or complementary indicators.
🔑 ATR Signals at a Glance
| ATR Condition | Interpretation |
|---|---|
| 📈 ATR rising | Volatility increasing |
| 📉 ATR falling | Volatility decreasing |
| 🔥 Very high ATR | Unusually large price movements |
| 💤 Very low ATR | Volatility compression |
| 📈 Price ↑ + ATR ↑ | Bullish trend with expanding volatility |
| 📉 Price ↓ + ATR ↑ | Bearish trend with expanding volatility |
| ↔️ Price sideways + ATR ↓ | Consolidation/volatility compression |
| 🚀 Breakout + ATR ↑ | Volatility confirmation |
| 🛑 ATR × multiplier | Potential volatility-adjusted stop distance |
🏆 Final Takeaway
The Average True Range (ATR) is one of the most practical volatility indicators available to traders.
Its greatest strength is not predicting market direction, but helping traders understand how much the market is moving.
ATR can therefore play an important role in:
- 📊 Volatility analysis
- 🛑 Stop-loss placement
- 📐 Position sizing
- 🚀 Breakout confirmation
- 🎯 Profit-target planning
- 🔄 Trailing stops
- 📈 Swing trading
The traditional 14-period ATR is a useful starting point, but traders should adapt the setting to their timeframe, asset, and strategy.
Most importantly, ATR should be combined with price action, trend analysis, support and resistance, volume, and disciplined risk management rather than being treated as a standalone buy or sell signal.
🔍 Frequently Asked Questions About ATR
What does ATR tell you?
ATR tells you the average magnitude of an asset’s price movement over a specified period. It measures volatility rather than direction.
Is a high ATR good or bad?
Neither. A high ATR simply means the asset is experiencing larger price movements. Whether that is favorable depends on the trading strategy.
What is the best ATR setting?
The 14-period setting is the traditional default. Shorter settings respond faster, while longer settings provide smoother readings.
Can ATR predict price direction?
No. ATR is a non-directional volatility indicator. It cannot independently predict whether prices will rise or fall.
Is ATR useful for stop losses?
Yes. ATR is widely used for volatility-adjusted stop losses because it allows stop distances to adapt to current market conditions.
Is ATR good for swing trading?
Yes. ATR can be particularly useful for swing traders because it helps adjust stops, position sizes, and targets to the volatility of the underlying asset.
